Spark Plug Info for M37 and Other Vehicles

This information was sent to me by Pete from the BigElectric M37 forum.   I downloaded the photos from the server that they were linked to and put them on mine just to make sure that they didn't disappear on me.  Otherwise, the page is unedited from the form that I received it.  For those of you who might like to print the information out for reference, I have a PDF version.

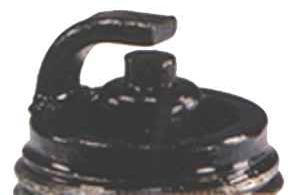

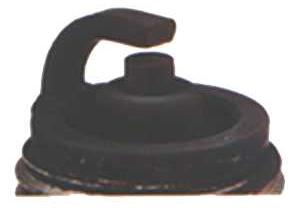

Pete also sent me a PDF file that consists of a chart showing a variety of spark plug tip conditions that is useful in determining and diagnosing engine conditions and problems.  The spark plug tip chart may be found here in PDF Form.

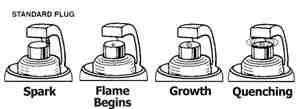

Firing tip configuration

As a rule of thumb, the more the spark gap is exposed to the air/fuel mixture, the easier to initiate combustion. Better combustion equates to more horsepower, improved throttle response and higher fuel economy. Unfortunately there is no one "best" tip configuration for all engines. Each plug manufacturer offers a variety of designs each with its own advantages and disadvantages. The only thing we found the plug techs agreed on was that for performance issues, a fine wire center electrode will provide a stronger spark from the existing voltage. However, fine wire electrodes will not survive in many modified motors. Fortunately, there are a variety of firing tips for you to choose from. After you have narrowed your plug choices according to your shell construction features and heat range, you will see each of the remaining choices have their firing tip described and pictured.

Heat range

The term spark plug heat range refers to the speed with which the plug can transfer heat from the combustion chamber to the engine head. Whether the plug is to be installed in a boat, lawnmower or racecar, it has been found the optimum combustion chamber temperature for gasoline engines is between 500°C–850°C. When it is within that range it is cool enough to avoid pre-ignition and plug tip overheating (which can cause engine damage), while still hot enough to burn off combustion deposits which cause fouling.

The spark plug can help maintain the optimum combustion chamber temperature. The primary method used to do this is by altering the internal length of the core nose, in addition, the alloy compositions in the electrodes can be changed. This means you may not be able to visually tell a difference between heat ranges. When a spark plug is referred to as a "cold plug", it is one that transfers heat rapidly from the firing tip into the engine head, which keeps the firing tip cooler. A "hot plug" has a much slower rate of heat transfer, which keeps the firing tip hotter.

An unaltered engine will run within the optimum operating range straight from the manufacturer, but if you make modifications such as a turbo, supercharger, increase compression, timing changes, use of alternate racing fuels, or sustained use of nitrous oxide, these can alter the plug tip temperature and may necessitate a colder plug. A rule of thumb is, one heat range colder per modification or one heat range colder for every 75–100hp you increase. In identical spark plug types, the difference from one full heat range to the next is the ability to remove 70°C to 100°C from the combustion chamber.

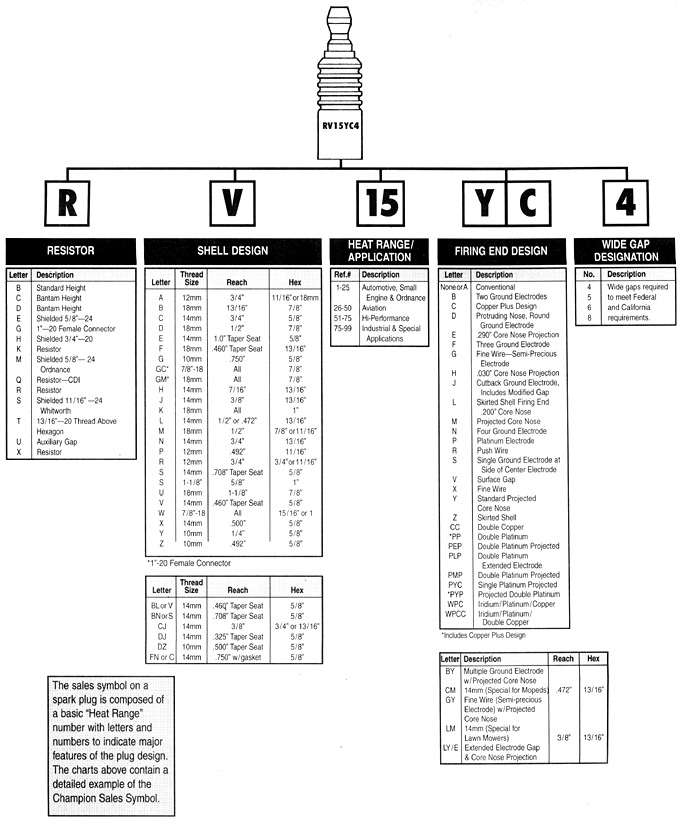

The heat range numbers used by the various manufacturers are not universal, by that we mean, a 10 heat range in Champion is not the same as a 10 heat range in NGK. Some manufacturers numbering systems are opposite the other, for domestic manufacturers (Champion, Autolite, Splitfire), the higher the number, the hotter the plug. For Japanese manufacturers (NGK, Denso), the higher the number, the colder the plug.

Do not make spark plug changes at the same time as another engine modification such as injection, carburetion or timing changes as in the event of poor results, it can lead to misleading and inaccurate conclusions (an exception would be when the alternate plugs came as part of a single precalibrated upgrade kit). When making spark plug heat range changes, it is better to err on the side of too cold a plug. The worst thing that can happen from too cold a plug is a fouled spark plug, too hot a spark plug can cause severe engine damage.

Air fuel mixture

Theoretically the ideal air fuel ratio for gasoline motors is 14.7:1(14.7 lbs of air to 1 lbs. Fuel), however due to cylinder wall wetting, the fuel ratio is increased to 12.2 to 1. Ratios higher than this may be too lean and can contribute to pre-ignition or detonation. Ratios lower may be too rich and cause fouling although some favor a richer mixture due to a slightly slower burn and increased charge cooling (cooling from the air/fuel mixture on intake).

Timing

Advancing the ignition timing will raise the firing end temperature and becomes even more critical when compression ratios are also increased. Adjustment in spark plug heat range is likely necessary.

Compression ratio

An increase in the compression ratio raises both the pressure and the temperature within the combustion chamber. This will raise the spark plug tip temperature increasing the chances of pre-ignition. Adjustment in spark plug heat range is likely necessary, in addition, whenever compression ratios are altered, it may be necessary to modify the spark advance curve and recalibrate fuel system.

Fuel types

Alternate fuels can affect both heat range and the voltage required to fire the spark plug. Different types of fuel affect the required voltage as the bonding of the gas particles differs from one fuel to the next. Different fuels can also affect heat range. For example, when using LPG a colder spark plug is necessary, as LPG will raise the combustion chamber temperature. This is because LPG is already in a gaseous form on intake, therefore it does not use any heat to evaporate, this means there is less of a cooling effect available from the incoming air/fuel mixture. On the other hand, methanol, because of its heat vaporization properties, will aid in cooling, therefore a hotter plug is required.

Nitrous

Nitrous Oxide is an efficient means of getting more oxygen into the combustion chamber. Initially the
N2O injection will cool the incoming charge due to the energy expended on vaporization into the air fuel mixture. However, do to the dramatic increase in power output, the sustained use of N2O increases cylinder temperatures to the point you may require a spark plug one or two heat ranges colder. If the nitrous is used only for very short bursts, (less than 10 seconds), then the standard plug can likely be used with no spark plug heat change necessary.

Turbos and Blowers

Whether using a supercharger or a turbocharger, both have the effect of increasing the mass airflow into the engine which increases engine displacement. With the additional displacement comes not only an increase in horsepower, but also an increase in firing tip temperature, thus requiring a colder heat range spark plug. If however, you have added extreme boost or a combination of boost and other modifications, changing heat ranges may not be enough. Tip configuration may also need to be altered, as there are a variety of firing tip choices, it would be wise to consult your engine builder or performance tuner specialist for input.

Elevation

As the elevation increases, the atmosphere thins; this reduces the oxygen available and alters the air fuel ratio. At 1000ft, this can decrease horsepower nearly 3%, and almost 9.5% at 3,000ft. If a race is held at elevations considerably above sea level, the air fuel mixture should be leaned. The spark plug heat range should remain the same unless also at high elevations, (above 3000ft), in which changing to a hotter plug may be necessary. A small part of the lost horsepower may be regained by increasing the spark advance a few degrees.

Ambient Temperature

As the outside temperature falls, the air density rises which increases the air mass. This increase in mass raises the combustion pressure and temperatures, thus raising the spark plug firing tip temperature, possibly requiring a colder plug. Conversely with a higher outside temperature, you get the net effect of lowering internal plug firing temperatures, possibly requiring a hotter plug. However, it is only under racing conditions and extreme outside temperatures that a plug heat change would be warranted.

Humidity

As humidity increases, the air mass decreases. This lowers the combustion pressure and temperatures resulting in a decrease in the temperature of the spark plug firing tip. As humidity is only a very minor consideration in engine tuning, any performance alterations including changing spark plug heat ranges due to humidity should be considered only by an experienced performance tuner under serious racing conditions.

Indexing

Used by racing tuners only, indexing refers to a process whereby auxiliary washers of varying thickness are placed under the spark plug's shoulder so that when the spark plug is tightened, the gap will point in the desired direction. However, without running an engine on a dyno, it is impossible to gauge which type of indexing works best in your engine. While most engines like the spark plug's gap open to the intake valve, there are still other combinations that make more power with the gap pointed toward the exhaust valve.
In any case, engines with indexed spark plugs will typically make only a few more horsepower, typically less than 1% of total engine output. For a 500hp engine, you'd be lucky to get 5hp. While there are exceptions, the bottom line is that without a dyno, gauging success will be difficult.

Gap Settings

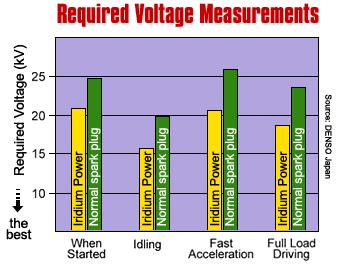

A spark plugs’ tip temperature and the voltage necessary to fire the plug are directly affected by the gap setting. Most manufacturers set the gap from the factory for that plugs most popular application. Unfortunately, that plug may have hundreds of applications from automobiles to golf carts. Setting the gap for your particular engine is important as insufficient spark plug gap can cause pre-ignition, detonation and even engine damage. Whereas too much gap can result in a higher rate of misfires, loss of power, plug fouling and poor fuel economy. Even if the preset gap is supposed to match your motor, it is always best to physically check that the gap is adjusted properly for your motor prior to installation.
For modified motors, proper gapping is essential; gap settings are affected by increased compression, fuel type, turbos, nitrous and high output ignition system. Most experienced tuners know that opening the gap up to present a larger spark to the air/fuel mixture maximizes burn efficiency, however, after they have raised compression and installed a turbo, they have to lower the gap (to ensure ignitability in the denser air/fuel mixtures). It is for this reason that most racers add high power ignition systems. The added power allows them to reopen the gap without misfire.

Plug torque settings

It is essential to tighten a spark plug to the specified turning angle or torque setting. This is for a number of reasons, over tightening can cause;
1) Damage to the threads in the cylinder head (especially aluminum heads).
2) Damage the threads of the spark plug.
3) Damage the internal seal of a spark plug allowing combustion chamber blow-by.
Under tightening of the spark plug can cause plug overheating and possibly pre-ignition. This is because one of the primary purposes of the spark plug is to remove heat from the combustion chamber, it does so by transferring that heat to the engine head. If the plug is not properly tighten it will not have sufficient contact with the head to transfer that heat. Proper tightening procedure is described below.

Screw in the spark plug finger tight until the gasket meets the cylinder head. Then seat the plug/gasket with a torque or turning angle wrench as specified in the chart below

Resistor plugs for race engines

It is strongly recommended resistor spark plugs be used in any motor that has on-board computer systems to monitor or control engine performance. Use of a non-resistor plug in certain applications can actually cause the engine to suffer undesirable side effects such as an erratic idle, high-rpm misfire, engine run-on, power drop off at certain rpm levels and abnormal combustion. Resistor plugs are also recommended on any vehicle that has other on-board electronic systems such as, two-way radios, GPS systems, depth finders or whenever recommended by the manufacturer.

If you have an outboard marine CDI (capacitive discharge ignition), (such as Johnson and Evinrude), make sure to use a plug with an inductive type resistor (such as a Champion Q-type or NGK Z-type). Use of non-inductive resistor type plugs on these motors can create an open circuit within the spark plug (it will become a dead plug).

Mallory, MSD, Crane and Accel also produce a high output ignition CDI system, however, these should not be confused with a marine style CDI as mentioned above. For an automotive high output CDI system it is imperative you consult that manufacturer for plug specifications for their system. Some high out put systems specify the use of resistor plugs, while others will fry the internal plug resistor turning its 5k ohms into 60k ohms.

As a rule, performance is in no way impaired by resistor spark plugs. The only exception to this may be some models of high output CDI specify non-resistor plugs.

What is a racing plug?

Most "racing" spark plugs are just colder heat ranges of the same street versions spark plug. Their internal construction is no different than their standard heat range equivalents. Racing spark plugs do not make more power in an engine, rather, they allow the engine to make more power. Meaning, after all the engine modifications are done that add power, a racing plug is better designed to operate in the torturous conditions created by those modifications. If you used a regular plug in a modified race engine, it would quickly be destroyed, while a properly selected racing plug would endure the extreme limits of that motor. Take that same racing plug, however, put it in an unmodified motor, and it would foul out within minutes.

The differences between a racing plug and traditional plug are not solely heat range. There are firing tip configurations necessary for survival in alternate fuel racing and situations of extreme boost/compression (such as retracted-nose insulators or surface gap firing tips), which would run very poorly in an unmodified motor. However, there are some very effective race plug design features including ultra-fine wire electrodes, gold palladium, platinum, iridium electrodes and cut back ground electrodes that are now available in standard non-racing heat ranges, these can maximize fuel combustion and improve performance in unmodified motors as well.

Gold Palladium

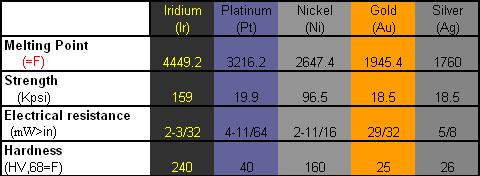

Gold is an excellent conductor of electricity which makes it well suited for a performance plug. However gold is also a very soft metal, therefore the gold alloy is mixed with palladium, (a much harder metal), to form a premium fine wire performance plug with increased ignitability and durability.

Cut back ground

Ground electrodes come in a variety of shapes and sizes. They are also called by a variety of names depending on manufacturer, IE: trapezoid cut ground, tapered cut ground,

fine wire ground, angled ground, trimmed side electrode, wedge shaped ground, inverted V-tip ground, cut back ground, etc. All have the same purpose, to reduce quenching and shadowing.

Shadowing

To understand shadowing, it is good to understand first that all vehicle manufacturers try to place the tip of the spark plug within the center of the combustion chamber (that is the center of the combustion chamber with the piston at top dead center). This is to expose as much of the air fuel mixture as possible to the ignition spark, the more air/fuel exposed, the likelier chance of complete ignition (less misfires). But just as putting a board in front of a flashlight will block the light from everything behind that board, so the ground electrode can block a portion of the air fuel mixture from exposure to the spark. Thus a variety of ground electrode designs are available(

fine wire ground, cut back ground, angled ground, etc) all help to reduce shadowing.

When are racing plugs necessary?

Not all modifications would require the use of racing plugs. Modifications that do not alter the overall compression ratio will not usually necessitate changing plug types or heat ranges. These would include free-flowing air filter, headers, mufflers and rear-end gears. Such minor modifications will not significantly increase the amount of heat in the combustion chamber, hence, a plug change is not warranted. However, modifications that introduce new fuel types or alter compression ratios such as turbo charging, supercharging, nitrous oxide injection, modified cylinder heads or piston configurations, to name a few, generally require a change from stock spark plugs. This is because, with compression increase comes additional heat which requires a colder plug, with fuel and altered piston/plug clearances can come firing tip configuration changes. Typically, for every 75-100 hp you add, you should go one full step colder on the spark plug's heat range. If you have gone too cold you may see severe oil or fuel fouling.
